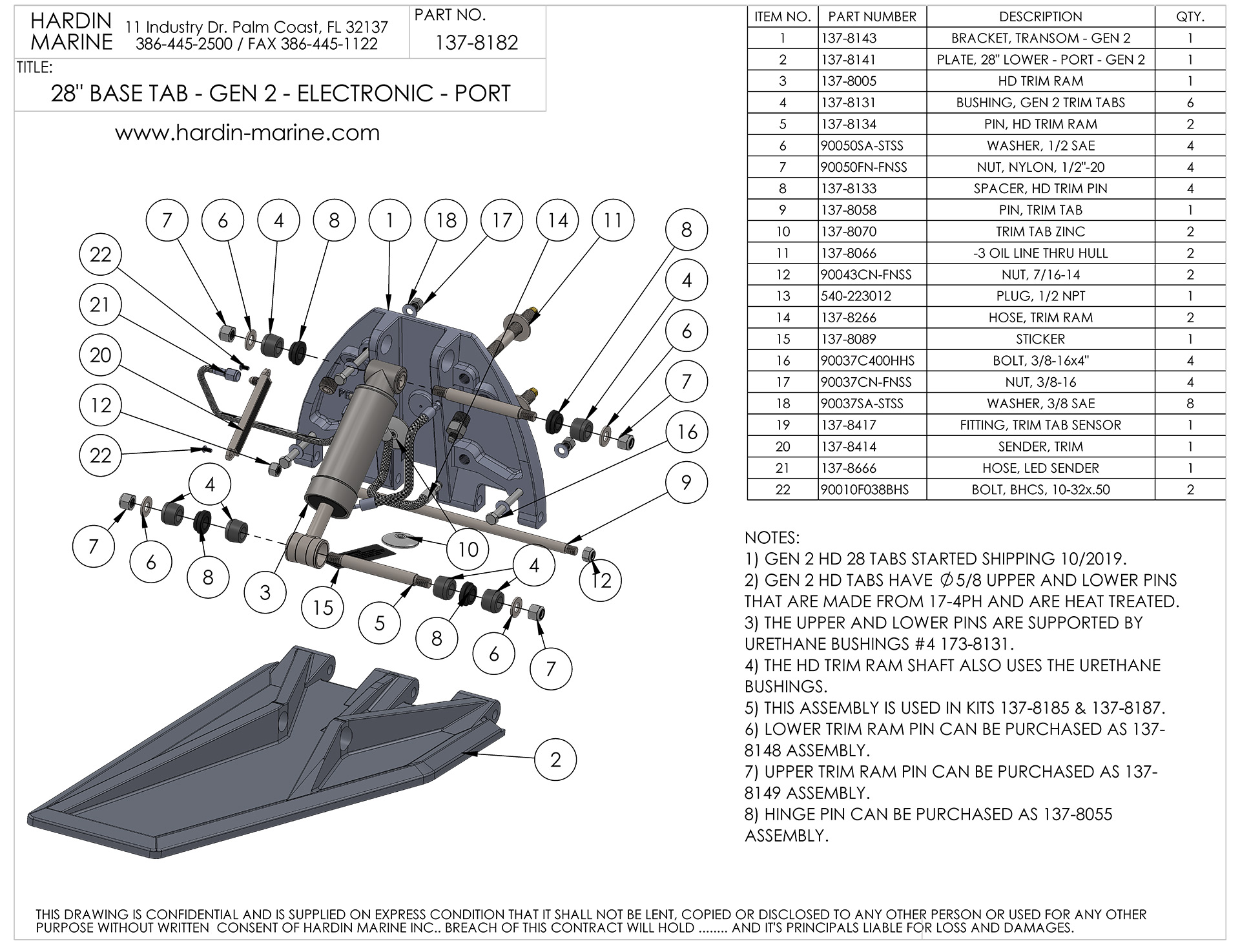

Mayfair Gen 2 Electronic Trim Tabs – 28″

ITEM NO.PART NUMBERDESCRIPTIONQTY.
1137-8143BRACKET, TRANSOM – GEN 21
2 PORT137-8141PORT PLATE, 28″ LOWER – GEN 21
2 STBD137-8142STARBOARD PLATE, 28″ LOWER – GEN 21
3137-8005HD TRIM RAM1
4137-8131BUSHING, GEN 2 TRIM TABS6
5137-8134PIN, HD TRIM RAM2
690050SA-STSSWASHER, 1/2 SAE4
790050FN-FNSSNUT, NYLON, 1/2″-204
8137-8133SPACER, HD TRIM PIN4
9137-8070TRIM TAB ZINC2
10137-8066-3 OIL LINE THRU HULL2
11137-8058PIN, TRIM TAB1
1290043CN-FNSSNUT, 7/16-142
13540-223012PLUG, 1/2 NPT1
14137-8266HOSE, TRIM RAM2
15137-8089STICKER1
1690037C400HHSBOLT, 3/8-16×4″4
1790037CN-FNSSNUT, 3/8-164
1890037SA-STSSWASHER, 3/8 SAE8
19137-8417FITTING, TRIM TAB SENSOR1
20137-8414SENDER, TRIM1
21137-8666HOSE, LED SENDER1
2290010F038BHSBOLT, BHCS, 10-32x.502
